TV One Video Conversion Products

Cat. 5 VGA Extenders

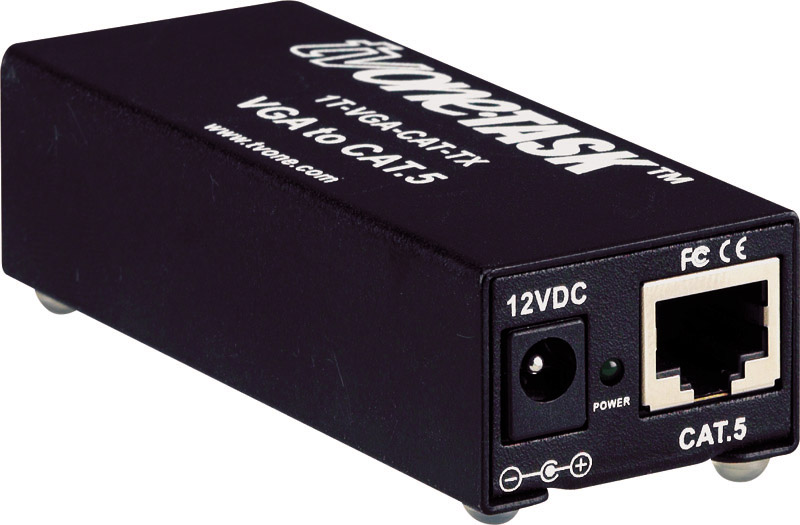

1T-VGA-CAT consists of a transmitter and receiver unit capable of encoding and decoding of up to 1280x1024 VGA resolution signal into a bit stream suitable for remote viewing using a single, dedicated CAT 5 grade network cable. Transmission distances of 590 feet (180m) are possible with this device. One transmit/receive pair will provide an image to a single remotely located VGA monitor or projector.

1T-VGA-CAT-XL has the same features, resolution, encode and decode capabilities of the 1T-VGA-CAT but doubles the range to 1000 feet (300m). VGA loop-thru is provided on the 1T-VGA-CAT-XL Transmitter.

1T-VGAST-CAT-XL is the same as the 1T-VGA-CAT-XL but adds the ability to include either PC audio or external microphone audio in the CAT.5 signal.

1T-VGA4-CAT-TXL and 1T-VGA8-CAT-TXL encode a VGA signal of up to 1280x1024 resolution and feed 4 or 8 CAT 5 cables respectively over distances of up to 1000 feet (300m). VGA loop-thru is provided with these units.

1T-VGA-CAT-RXL decodes signals received via CAT 5 cables from the 1T-VGA4-CAT-TXL or 1T-VGA8-CAT-TXL transmitter. A dedicated CAT 5 cable plus a dedicated 1T-VGA-CAT-RXL receive unit is required for each remotely located VGA display device. Equalization and gain controls are provided for each receiver.

SPECIFICATIONS

Video Inputs

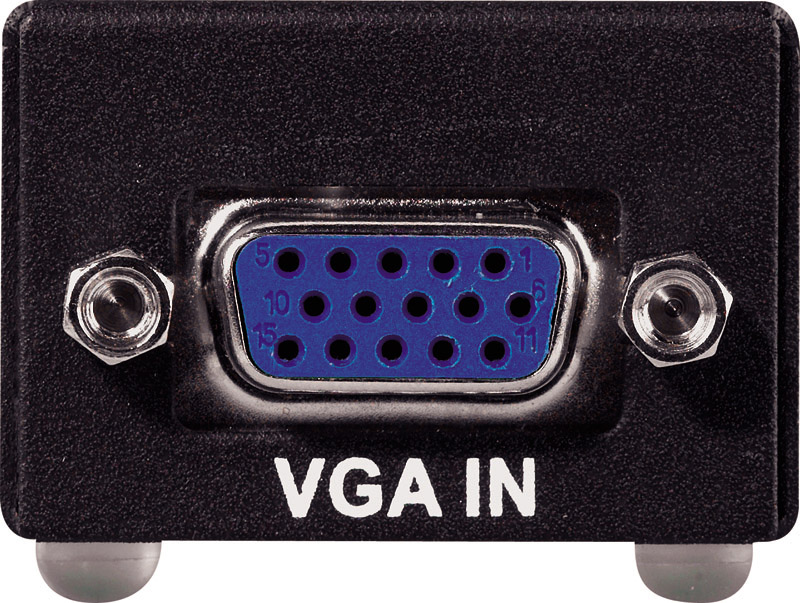

1T-VGA-CAT (Transmitter)	1xHD-15 VGA Connector
1T-VGA-CAT-XL (Transmitter)	2xHD-15 (loop thru Connectors)
1T-VGAST-CAT-TXL	2xHD-15 (loop thru Connectors)
1T-VGA4-CAT-TXL	2xHD-15 (loop thru Connectors)

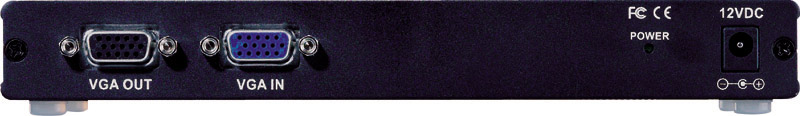

1T-VGA8-CAT-TXL	2xHD-15 (loop thru Connectors)
Video Outputs
1T-VGA-CAT (Receiver)	1xHD-15 VGA Connector
1T-VGA-CAT-XL (Receiver)	1xHD-15 VGA Connector
1T-VGAST-CAT-XL	1xHD-15 VGA Connector
1T-VGA-CAT-RXL	1xHD-15 VGA Connector
Audio I/O
1T-VGAST-CAT-XL	T=1 Line, 1 Mic In, R=1 Line Out
CAT 5 Connectors

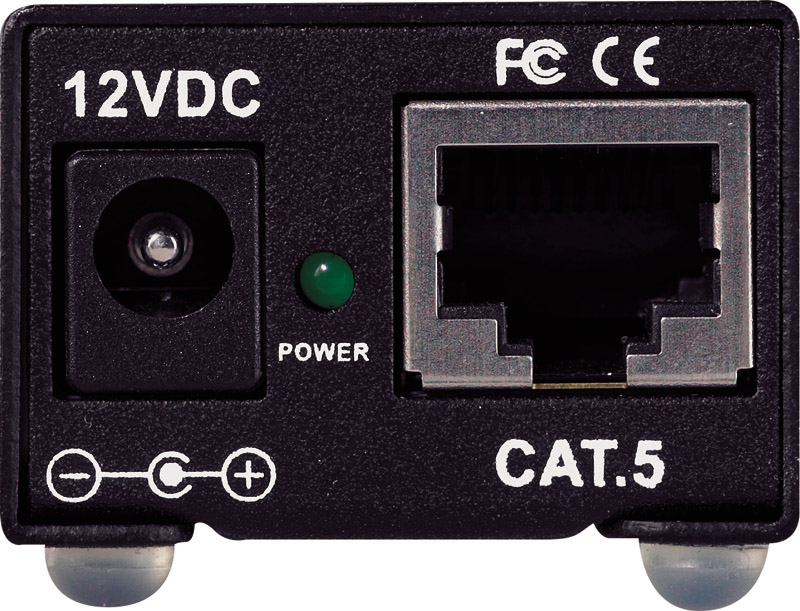

1T-VGA-CAT	2xRJ-45 (1Transmit + 1Receive)
1T-VGA-CAT-XL	2xRJ-45 (1Transmit + 1Receive)
1T-VGAST-CAT-XL	2xRJ-45 (1Transmit + 1Receive)
1T-VGA4-CAT-TXL	4xRJ-45 (4 Transmit)

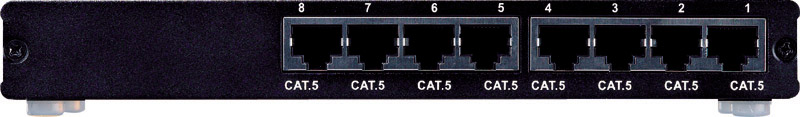

1T-VGA8-CAT-TXL	8xRJ-45 (8Transmit)
1T-VGA-CAT-RXL	1xRJ-45 (1 Receive)
Resolution
All units	Up to 1280x1024
Signal Adjustments
Equalization and Gain	All Receivers
Range
1T-VGA-CAT	590 Ft (180m)
1T-VGA-CAT-XL	1000 Ft (300m)
1T-VGAST-CAT-XL	1000 Ft (300m)
1T-VGA4-CAT-TXL	1000 Ft (300m)
1T-VGA8-CAT-TXL	1000 Ft (300m)
1T-VGA-CAT-RXL	1000 Ft (300m)
Cable Requirements
CAT 5/5E or CAT 6	Network Grade, Premium Cables
Enclosure Type
Metal	Extruded w/ scuff resistant feet
Mechanical
Size (HWD)
1T-VGA-CAT & XL (R&T)	0.86”x1.3”x3.6” (22x34x92mm)
1T-VGAST-CAT-XL	1.00”x4.4”x5.1” (25x110.5x130mm)
1T-VGA4-CAT-TXL	1.16”x5.1”x3.3” (29.5x130x83.5mm)
1T-VGA8-CAT-TXL	1.16”x7.9”x3.3” (29.5x200x83.5mm)
1T-VGA-CAT-RXL	0.86”x1.3”x3.6” (22x34x92mm)
Weight(Net)
1T-VGA-CAT & XL (R&T)	T=0.27lbs (135g), R=0.31lbs (140g)
1T-VGAST-CAT-XL (R&T)	0.6lbs(270g)
1T-VGA4-CAT-TXL	0.5lbs (247g)
1T-VGA8-CAT-TXL	0.76lbs (345g)
1T-VGA-CAT-RXL	0.31lbs (140g)
Warranty
Limited Warranty	2 Years Parts and Labor
Environmental
Operating Temperature	0° to +48° C (32° to 120° F)
Operating Humidity	10% to 85%, Non-condensing
Storage Temperature	-10° to 70° C (14° to 158° C)
Storage Humidity	10% to 85%, Non-condensing
Power Requirement
External Power Supply	+12VDC@600mA, Locking DC
Regulatory Approvals
Encoder/Decoder Unit	FCC, CE, RoHS
Power Supplies	UL, CE, CSA, RoHS
Accessories Included
See Specsheet	Download Specsheet
Product Item Numbers
1T-VGA-CAT	CAT5 VGA Extender, Std. Range^*
1T-VGA-CAT-XL	CAT5 VGA Extender, Ext’d. Range
1T-VGAST-CAT-XL	CAT5 VGA Extender, Ext’d. Range
1T-VGA4-CAT-TXL	4 output CAT5 VGA Xmit., Ext Range
1T-VGA8-CAT-TXL	8 output CAT5 VGA Xmit., Ext Range
1T-VGA-CAT-RXL	CAT5 VGA Dedicated Receiver^*
^* No VGA Cable provided for this product – Cable not needed.
