1T-RGB-DELAY provides
skew correction for the Red, Green and Blue VGA signals transmitted over CAT 5 cables.
Transmissions over a CAT 5 cable path of more than 250 feet can exhibit displacement of
portions of the video signal. This skewing can occur at different rates resulting in RGB
images that are not overlaid properly.
With the 1T-RGB-DELAY, individual RGB signals can be accessed and,
once an adjustment has been made, further adjustments can be locked out to preclude
tampering or inadvertent changes. Operationally, the 1T-RGB-DELAY is placed between
the host device and the CAT 5 transmitter. Individual RGB signals are delayed as
required to bring the total image back into registration at the remote viewing location.
|
SPECIFICATIONS
| Video Inputs |
| VGA |
1xHD-15 Female |
| Video Outputs |
| VGA |
1xHD-15 Female |
| Resolution |
| VGA |
Up to 1280x1024 |
| Signal Adjustments |
| RGB Individual Channel |
Up to 62ns delay per channel |
| Delay Step Size |
2ns |
| Adjustment Method |
Up/Dn Push Buttons (Ea. Chan.) |
| Adjust Lock Method |
Dedicated Push Button |
| Cable Requirements |
| CAT 5/5E or CAT 6 |
Network Grade, Premium Cables |
| Enclosure Type |
| Metal |
Extruded w/ scuff resistant feet |
| Mechanical |
| Size (HWD) |
1.16"x5.1"x3.3" (29.5x130x83.5mm) |
| Weight(Net) |
0.5 lbs (225 g) |
| Warranty |
| Limited Warranty |
2 Years Parts and Labor |
| Environmental |
| Operating Temperature |
0° to +48° C (32° to 120° F) |
| Operating Humidity |
10% to 85%, Non-condensing |
| Storage Temperature |
-10° to 70° C (14° to 158° C) |
| Storage Humidity |
10% to 85%, Non-condensing |
| Power Requirement |
| External Power Supply |
+12VDC@1A, Locking DC |
| Regulatory Approvals |
| Encoder/Decoder Unit |
FCC, CE |
| Power Supplies |
UL, CE, CSA |
| Accessories Included |
| See Specsheet |
Coming Soon |
| Product Item Numbers |
| Item Number |
1T-RGB Delay |
|
Key Features of the 1T-RGB-DELAY
- Simple Installation and operation
- Resolutions to 1280x1024, 60Hz
- 62ns of total delay range, 2 ns steps
- Memorize and lock function
- Delay adjustments for individual RGB channels
|

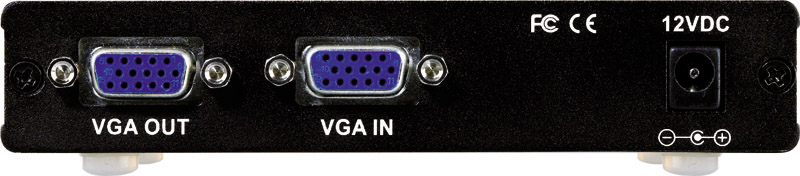

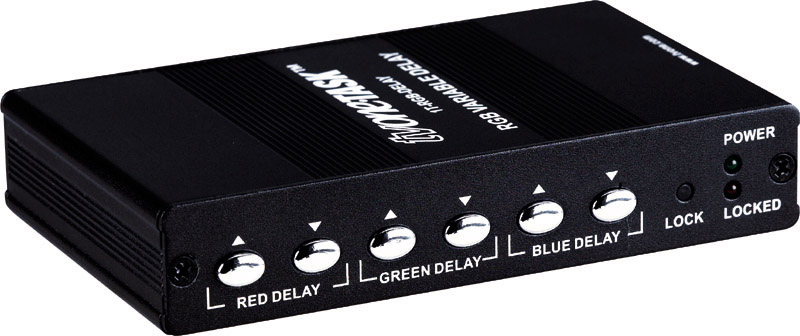

Click the image for a larger view ...
|
|
