1T-SDI-V is a high performance, multi-standard Serial Digital to
Analog Converter, designed for and professional and broadcast monitoring
applications. The unit provides 8-bit SDI to Analog conversion with reclocking
and equalization of the input signal for distances up to 300 meters from the
source, provided that high quality, double shielded coaxial cable has been used..
The 1T-SDI-V handles 525 or 625 line signals and provides NTSC, PAL, PAL-N and
PAL-M outputs. Selection of the output standard is via front panel dip switches.
A Composite and an S-Video output is provided. The unit is housed in an ultra
compact metal case. It uses an external 5VDC In-Plug type power adapter with
locking DC connector.
| SPECIFICATIONS
| SDI Video Input |
| SMPTE 259M, 270Mbits/sec |
1x via BNC Connector |
| Analog Video Outputs |
| Composite |
1x via BNC Connector |
| S-Video (Y/C) |
1x via 4-PIN Mini-DIN |
| Television Standards |
NTSC, PAL, PAL-N, PAL-M |
| Impedance |
75Ω |
| Video Specifications |
| Signal Processing |
8-bit |
| Frequency Response |
Flat to more than 5MHz |
| Signal to Noise Ratio |
| Black Field |
>65db |
| Control Method |
| Front Panel Dip Switch |
Select Output Standard |
| Mechanical |
| Size (H-W-D) |
1.2"x5.25"x3" (30x133x76mm) |
| Weight (Net) |
10 oz (285g) |
| Warranty |
| Limited Warranty |
2 Years Parts and Labor |
| Environmental |
| Operating Temperature |
+32° to +120° F (0° to +48° C) |
| Operating Humidity |
10% to 85%, Non-condensing |
| Storage Temperature |
-40° to +150° F (-40° to +65° C) |
| Storage Humidity |
10% to 85%, Non-condensing |
| Power
Requirement |
| External Power Supply |
5VDC @ 0.5A |
| Regulatory
Approvals |
| Converter Unit |
FCC, CE |
| Power Supply |
UL, CE, CSA |
| Accessories Included |
| 1x SDI Input Cable |
6’ (2m) BNC to BNC |
| 1x Power Adapter |
Input: 100-240VAC/50-60Hz
Output: 5VDC@2A |
| 1x Operations Manual |
1T-SDI-V |
| Product Item Numbers |
| 1T-SDI-V |
SDI to Analog Converter |
|
Key Features
of the 1T-SDI-V
- 8-bit Signal Processing
- Serial Digital Video Input at 270Mbits/sec
- Composite and S-Video Outputs
- NTSC, PAL, PAL-N, PAL-M Operation
- Ultra Compact Metal Case
|

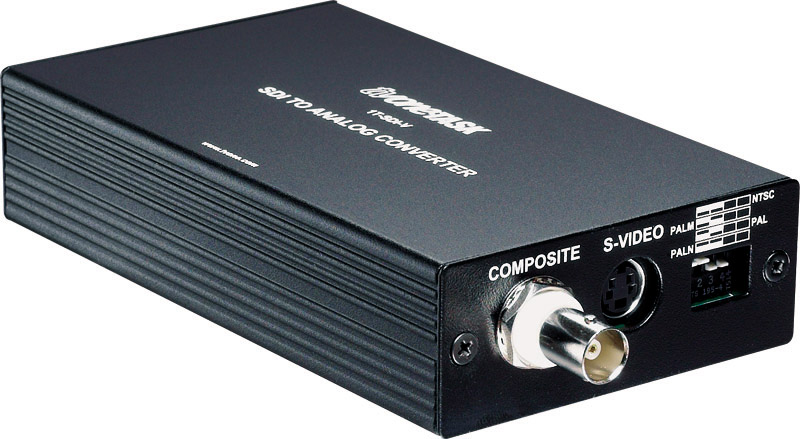

Click the image for a larger view ...

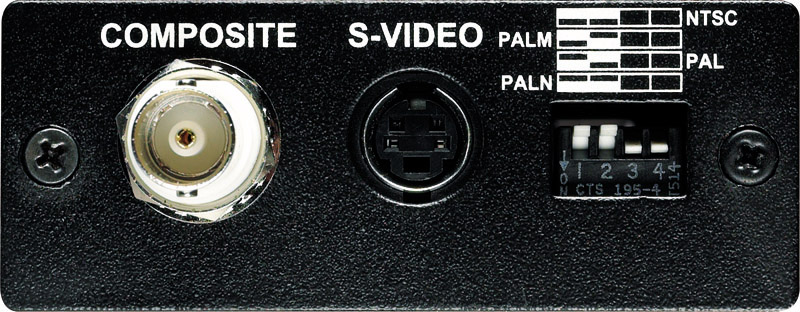

| 1T-SDI-V Front View |

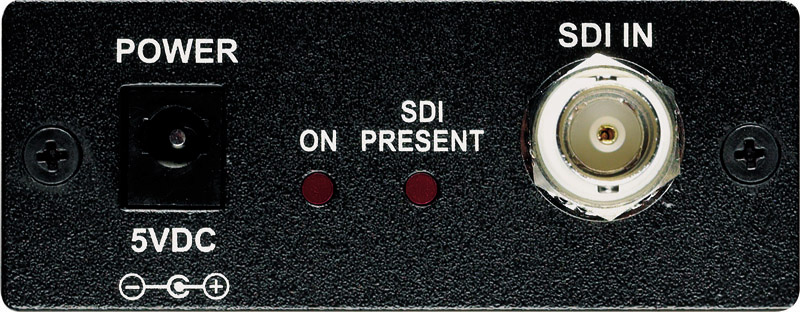

1T-SDI-V Rear View |
 |
 |
SDI Main
SD-220DA
1T-C2-511
1T-C2-520
1T-SDI-V
1T-V-SDI
|
- Spec sheet for 1T-SDI-V
