1T-V-SDI is a high performance, multi-standard Analog to Serial
Digital Converter, designed for professional and broadcast monitoring
applications. The 1T-V-SDI uses 8-bit technology and handles 525 or 625 line
signals and provides NTSC, PAL, PAL-N and PAL-M outputs. Selection of the output
standard is via front panel dip switches. A Composite and an S-Video output is
provided. The unit is housed in an ultra compact metal case. It uses an external
5VDC In-Plug type power adapter with locking DC connector.
| SPECIFICATIONS
| Analog Video Inputs |
| Composite |
1x via BNC Connector |
| S-Video (Y/C) |
1x via 4-PIN Mini-DIN |
| Television Standards |
NTSC, PAL, PAL-N, PAL-M |
| Impedance |
75Ω |
| SDI Video Output |
| SMPTE 259M, 270Mbits/sec |
1x via BNC Connector |
| Video Specifications |
| Frequency Response |
Flat to more than 6MHz |
| Chroma to Luma Delay |
<= 5nS |
| Differential Gain |
<=1% |
| Differential Phase |
<=1° |
| Luma Nonlinearity |
<=1% |
| Signal to Noise Ratio |
Better than 60db |
| Signal Processing |
8-bit |
| Control Method |
| Front Panel Dip Switch |
Output Standard, CV or SV In, Comb or Low Pass Filter |
| Warranty |
| Limited Warranty |
2 Years Parts and Labor |
| Mechanical |
| Size (H-W-D) |
1.2"x5.25"x3" (30x133x76mm) |
| Weight (Net) |
10 oz (285g) |
| Environmental |
| Operating Temperature |
+32° to +120° F (0° to +48° C) |
| Operating Humidity |
10% to 85%, Non-condensing |
| Storage Temperature |
-40° to +150° F (-40° to +65° C) |
| Storage Humidity |
10% to 85%, Non-condensing |
| Power
Requirement |
| External Power Supply |
5VDC @ 500mA - Locking DC |
| Regulatory
Approvals |
| Converter Unit |
FCC, CE |
| Power Supply |
UL, CE, CSA |
| Accessories Included |
| 1x C-Video Input Cable |
6’ (2m) BNC to BNC |
| 1x Power Adapter |
US, UK or Euro or Type |
| 1x Operations Manual |
|
| Product Item Numbers |
| 1T-V-SDI |
Analog to SDI Converter |
|
Key Features
of the 1T-V-SDI
- 8-bit Signal Processing
- Composite and S-Video Inputs
- Serial Digital Video Output at 270Mbits/sec
- NTSC, PAL, PAL-N, PAL-M Operation
- Ultra Compact Metal Case
|
Click the image for a larger view ...
| 1T-V-SDI Front View |

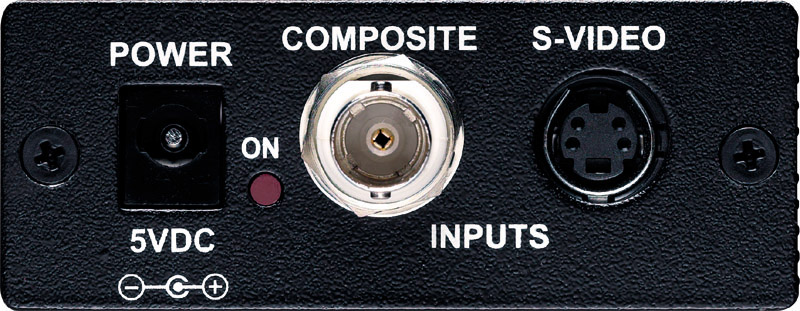

1T-V-SDI Rear View |
Image Coming Soon
 |
 |
SDI Main
SD-220DA
1T-C2-511
1T-C2-520
1T-SDI-V
1T-V-SDI
|
- Spec sheet for 1T-V-SDI
