C2-4100 RGB Video Scaleris a high performance PC-HDTV
Video Scaler, Seamless Switcher, Chromkeyer, Lumakeyer, Picture-in-Picture Device, RGB
Frame Synchronizer, Aspect Ratio Converter and a RGB-HDTV Genlock, just to name a few.
The 3-Inputs and 2-Outputs will accommodate RGBHV resolutions up to 2048x2048 and YPbPr
in all HDTV formats. Plus, the C2-4100 also has an RGBHV Preview Output to facilitate
live event switching.
As a Picture-in-Picture Device, any input of the C2-4100 RGB Video
Scaler can be squeezed and placed into a window of any size and positioned anywhere
on the screen. The window can be placed over any other input as the background. The
image in the window can then be seamlessly switched to another video input. The
image can also be zoomed while it is in the window. Multiple C2-4100 units may be
cascaded to provide multiple windows.
C2-4100’s output signal format flexibility assures that the Native
Resolution of virtually any display can be matched. Adjustment is provided for
Contrast and each video input has its own non-volatile memory to retain these
settings, even when the power to the unit has been turned off. Integral Test
Signals are user defined. A Logo memory is provided, so the unit can easily be used
as a Logo Inserter. The unit can be controlled from the front panel, via RS-232, by
an optional Infrared Control or a LAN with the optional Ethernet Control. The
Windows Control Panel provides complete control of the unit and adds Macros to
facilitate long, complex sequence of commands.
A2-2000 Stereo Audio Switcher
is offered to add Audio Follow Video or Audio Breakaway capability to the
C2-4100. This separate unit is 1 RU high and connects to the Scaler with a
15-Pin interconnect cable. The microprocessor in the A2-2000 communicates
with the microprocessor in the Universal Scaler. All commands originate in
the control software of the C2-4100. The A2-2000 provides both Balanced and
Unbalanced connections for its 10 Inputs, plus its Preview and Program
Outputs
|
SPECIFICATIONS
| 3 Video Inputs |
| RGBHV, YPbPr, YCbCr |
3x (1x via 5-BNC, 2x via HD-15F) |
| Genlock Input |
| Reference Signal |
Any of the Video Inputs |
| 2 Video Outputs |
| RGBHV, YPbPr, YCbCr |
2x (1x via 5-BNC, 1x via HD-15F) |
| Preview Output |
| RGBHV, YPbPr, YCbCr |
1x via HD-15 Female Connector |
| Input/Output Range |
| Computer Resolutions |
Any from 640x480 to 2048x2048 |
| Max Vert Refresh Rate |
250Hz |
| Max Horiz Frequency |
150KHz |
| HDTV Resolutions |
480p, 576p, 720p, 1080i |
| Interlace Support |
Progressive and Interlaced |
| Input RGB Sync |
| Type |
RGBHV, RGBS, RGsB |
| Level/Impedance |
TTL, 10K ohm |
| Polarity |
Positive or Negative |
| Maximum Level |
5Vp-p |
| Output RGB Sync |
| Type |
RGBHV, RGBS, RGsB |
| Level/Impedance |
5Vp-p, 220 ohm |
| Polarity |
Positive or Negative |
| Audio Switching (Optional A2-2000) |
| Stereo Inputs |
10x Balanced and Unbalanced |
| Program Output |
1x Balanced and Unbalanced |
| Preview Output |
1x Balanced and Unbalanced |
| Connectors per I/O |
2x RCA (Phono) for Unbalanced
1x Terminal Block for Bal & Unbal |
| Control Methods |
| Local Front Panel |
Up to 5x User-definable Preset Buttons +LED, Rotary Selector,LCD Readout |
| RS-232 Interface |
DB-9 Male Connector |
| IP Interface |
Optional – RJ45 Connector |
| Infrared |
IRC-5 Remote Control Unit |
| Audio Switcher Control |
Via D-15 Options Connector from the Main Unit |
| Mechanical |
| Desktop Case (HWD) |
1.75x17x7.9" (44x420x200mm) |
| With Rack Ears (HWD) |
1.75x19x7.9" (44x482x200mm) |
| Weight(Net) |
8.0 lbs (3.6 kg) |
| Environmental |
| Operating Temperature |
+41° to +113° F (5° to +45° C) |
| Operating Humidity |
10% to 85%, Non-condensing |
| Storage Temperature |
14° to +158° F (-10° to +70° C) |
| Storage Humidity |
10% to 85%, Non-condensing |
| General |
| Image Size & Position |
AutoSet or Manual |
| Image Zoom Range |
Continuous to 1000% |
| Image Shrink Range |
Continuous to 10% |
| Image Mirroring |
Horizontal and/or Vertical |
| Image Freeze |
Full Frame |
| Video Memory |
4x4MB Picture Memory Buffers (16MBytes total) |
| Firmware Memory |
Flash -- Upgradable via RS-232 |
| Picture-in-Picture |
Any 2 Video Inputs |
| Number PIP Windows |
Multiple Units may be Cascaded |
| Video I/O Impedance |
75 ohm R,G,&B |
| De-Interlacing |
Pixel-level Motion Adaptive At 15kHz input (YCbCr)
|
| Digital Sampling |
24-bit, 8-bits per R, G, and B |
| Colors |
16.7 Million |
| Video Scaling Engine |
Proprietary CORIO2 |
| Internal Format |
4:2:2 |
| Internal Test Patterns |
User Defined |
| LCD Panel |
24x2 Character |
| Logo Inserter |
Flash Programmable |
| Proc Amp Adjustments |
Video Level for RGB Inputs |
| Proc Amp Memory |
Settings for each Video Input |
| Power Requirement |
| Internal Power Supply |
100-240VAC, 47-63Hz, 50W |
| Warranty |
| Limited Warranty |
2 Years Parts and Labor |
| Regulatory Approvals |
| Video Scaler Unit |
FCC, CE |
| Power Supplies |
UL, CE, CSA |
| Accessories Included |
| 1x VGA Output Cable |
6’ (2m) HD-15 Male to Male |
| 1x RGBHV Out Cable |
6’ (2m) 5 BNC to 5 BNC |
| 1x AC Power Cord |
6’ (2m) USA, UK or Euro Type |
| 1x Operations Manual |
C2-4100 |
| 1x Rackmount Kit |
2 Ears and 8 Screws |
| 1x Control Software |
Downloadable from website |
| Optional Accessories |
| A2-2000 |
Audio Switcher (Note 1) |
| IRC-5 |
IR Remote Control Unit |
| IP Interface |
Factory Installed Option |
| Product Item Numbers |
| C2-4100 |
RGB Video Scaler |
| C2-4110 |
RGB Scaler with IP Interface |
| Notes |
| (1) A2-2000 is controlled from the C2-4100 and
provides Audio Follow Video or Audio Breakaway.
|
|
Key Features of the C2-4100
- Multiple conversion & scaling products in one
- 3 Inputs and 2 Outputs, plus Preview Out
- I/O: YPbPr, YCbCr, RGBHV, RGsB, RGBS
- RGBHV to 2048x2048 & All HDTV Resolutions
- Genlock any Input to any other
- AutoSet Sizing - Exclusive CORIO® feature
- Seamless Switching with Cuts or Fades
- Unrestricted P-I-P – Any Input over any other
- RS-232 Interface for external control
- CORIO2® Technology Conversion Engine
- Zoom up to 1000% with 100% Pan coverage
- Image Shrink to 10% with 100% Pan coverage
- Video Image Adjustment with Multiple Memory
- Front Panel Knob, Buttons & LCD for control
- Optional IR Remote or IP Interface
- Universal Internal Power Supply
Multiple Products in One
- RGB Scaler
- Seamless Switcher
- Picture-in-Picture
- PC-HDTV Scaler
- HDTV-HDTV Scaler
- PC-PC Scaler
- RGB Frame Sync
- Windowing Device
- RGB-HDTV Genlock
- Logo Inserter
- Aspect Ratio Converter
- Chroma Keyer
- Luminance Keyer
- And more...
|

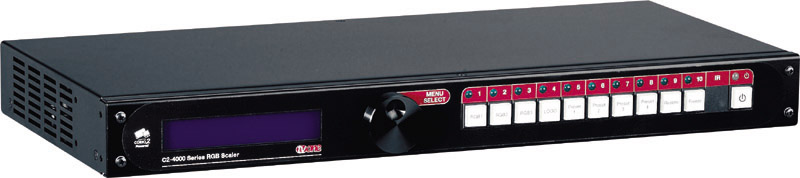

Click the image for a larger view ...
|
|
