CS-320 Connect and
CS-400 Select are
designed with high performance and ease of use in mind. AutoSet, an exclusive CORIO
feature, takes the hassle out of making the computer image fit onto the TV screen. Just
push a single button and the computer image is automatically sized and positioned to fit
exactly onto the video screen. The settings are retained in memory, even when power is
turned off, for dozens of computers and resolutions. So, the next time you use it, no
setup is required.
CS-320 Connect
handles both PC and Mac computers and can be controlled from the front panel or via an
Infrared Remote Unit. Its Zoom feature allows you to enlarge a quarter of the computer
screen to fill the entire video screen and the Pan feature allows you to move around to
any area you choose. The advanced 4-Line Digital Flicker Elimination circuitry provides
crisp, clear images up to 1024x768, without line dropping, at any vertical refresh rate.
It is capable of handling even higher resolutions. Video outputs are switchable between
NTSC and PAL and are simultaneously provided in Composite, S-Video and RGBS formats, as
well as a computer monitor loop-thru.
CS-400 Select
has all the functions of the CS-320 Connect plus some additional features. An OSD (On-Screen
Display) provides ease of setup and status monitoring. The RS232 Interface enables the
unit's IR Remote Control to function
as a Remote Mouse to control your computer from a distance. The CS-400 Select also has
a Brightness Control and two Composite Video and two S-Video Outputs for greater connectivity.
|
SPECIFICATIONS
| Computer Video Input |
| Signal Type |
RGBHV |
| Termination |
Auto-terminating into 75Ω |
| Connector |
1x HD-15 Female |
| R-G-B Level Range |
0.5-2.0 Vp-p |
| Scan Rate Detection |
Automatic |
| Maximum Resolution |
1600x1200 |
| Maximum Without LIne Drops |
1024x768 |
| Max Vert Refresh Rate |
|
| @640x480 |
210Hz |
| @800x600 |
170Hz |
| @1024x768 |
130Hz |
| @1280x1024 |
100Hz |
| @1600x1200 |
85Hz |
| Max Horiz Scan Rate |
100KHz |
| Computer Compatibility |
PC, Mac |
| Video Outputs |
| Television Standards |
NTSC, PAL-B/G Selectable |
| Impedance |
75Ω |
| Composite Video |
1x via RCA Connector (CS-320)
2x via RCA Connector (CS-400) |
| S-Video (Y/C) |
1x via 4-PIN Mini-DIN (CS-320)
2x via 4-PIN Mini-DIN (CS-400) |
| RGBS |
1x via HD-15 Female Connector |
| Computer Loop-thru |
1x via HD-15 Female Connector |
| General |
| Size and Position |
Automatic via AutoSet or Manual |
| Underscan/Overscan |
User-Definable Presets |
| Image Freeze |
One Video Frame |
| Settings Memory |
Non-Volatile |
| Zoom/Pan Range |
2X Zoom & 100% Pan Coverage |
| Flicker Filtering |
Selectable 2, or 4 Line |
| Horizontal Filtering |
Full Digital |
| Conversion Technology |
Proprietary – CORIO™ |
| Color Resolution |
24-bit (16.8 Million Colors) |
| Control Methods |
| Local (Note 1) |
via Front Panel Buttons |
| RS-232 Interface |
via 5-Pin Mini-DIN (CS-400 Only) |
| Infrared |
IR Remote Control Unit |
| Mechanical |
| Case Material |
Molded Plastic |
| CS-320 Size (H-W-D) |
1.25x7.25x4” (32x185x102mm) |
| CS-320 Weight (Net) |
10 oz (280 g) |
| CS-400 Size (H-W-D) |
1.25x7.25x4” (32x185x102mm) |
| CS-400 Weight (Net) |
10 oz (280 g) |
| Limited Warranty |
| Limited Warranty |
2 Years Parts and Labor |
| Environmental |
| Operating Temperature |
+32° to +120° F (0° to +48° C) |
| Operating Humidity |
10% to 85%, Non-condensing |
| Storage Temperature |
-40° to +150° F (-40° to +65° C) |
| Storage Humidity |
10% to 85%, Non-condensing |
| Power Requirement |
| CS-320 |
12VDC, 350mA, Center Pin + |
| CS-400 (from PC) |
12VDC, 350mA, Center Pin + |
| Regulatory Approvals |
| Scan Converter Units |
FCC, CE |
| Power Supplies |
UL, CE, CSA |
| Accessories Included |
| 1x C-Video Cable |
6’ RCA to RCA |
| 1x S-Video Cable |
6’ 4-Pin S-V to 4-Pin S-V |
| 1x VGA Cable |
3’ HD-15 Male to Male |
| 1x Serial Cable (Note 1) |
6’ 5-Pin Mini-DIN to PS2(CS-400) |
| 1x IR Remote Control |
IRC4 |
| 1x Operations Manual |
CS-320/CS-400 |
| 1x AC Power Adapter |
100-240VAC, 50-60Hz to 12VDC@800mA, Mini-Plug Type |
| Product Item Numbers |
| CS-320 |
CS-320 Connect |
| CS-400 |
CS-400 Select |
| Optional I/O Cable Assemblies |
| CA-RGB |
10’ HD-15 Male to 3BNC |
| CA-MAC (Note 2 ) |
2x HD-15 to DB-15 |
| Notes |
| (1) CS-400 has OSD (On-Screen Display) for settings. |
| (2) Required only for older Mac models not equipped with HD-15 VGA Output connector. |
|
Key Features of CS-320/400 Series
- Automatic incoming resolution detection
- AutoSet™ - Automatic picture sizing
- Automatic recognition of previously used PC types
- User Definable Overscan/Underscan
- Composite, S-Video and RGBs Outputs
- NTSC or PAL Selectable Output
- RS-232 Interface (CS-400 Only)
- Infrared Full Function Remote Control
- Remote Mouse Emulation (CS-400 Only)
- Image 2X Zoom and 100% Pan Coverage
- Digital Flicker Reduction
- Universal External Power Supply
|
Click the image for a larger view ...
| Connect |

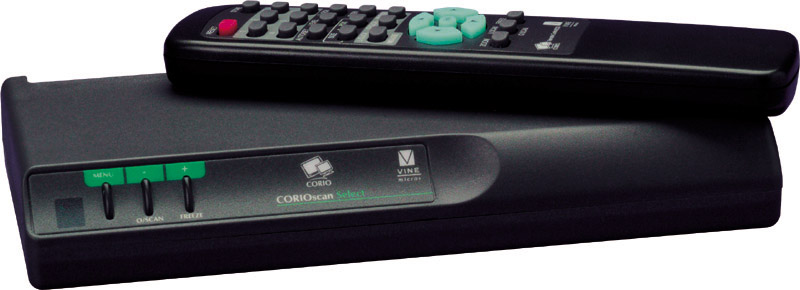

Select |
 |
 |

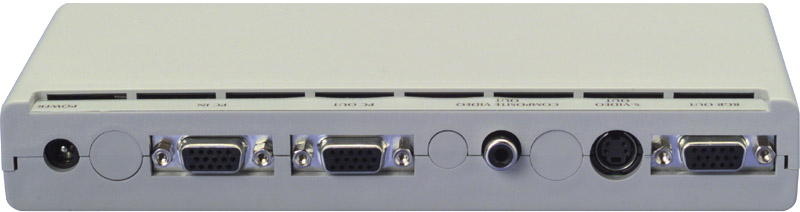

Connect rear panel |

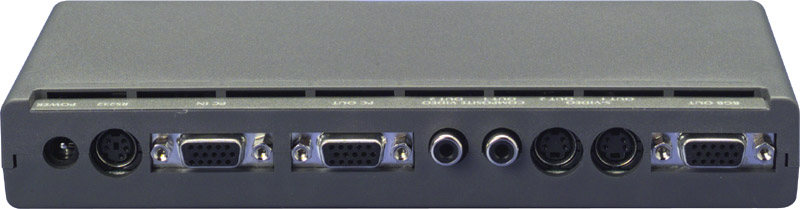

Select rear panel |
 |
 |
