CS-450 Eclipse provides the same high quality computer-to-video scan conversion as the CS-400 Select, while adding a genlock and overlay feature. It converts computer graphics to standard NTSC or PAL video and its integral digital luminance keyer allows those graphics to be keyed over an external Composite or S-Video signal. All black areas of the image from the computer can be replaced with the external video. Choose between Hard (Solid) or Soft (Transparent) Keys with five levels of transparency. Also, the Mix Mode permits glitch-free dissolving between the computer image and external video. The dissolve rate is adjustable for both the Key and Mix Modes. Like all CORIO products, this CS-450 has our exclusive AutoSet feature, which takes the hassle out of making the computer’s image fit onto the TV screen. Just push a single button and the computer’s image is automatically sized and positioned to fit exactly onto the video screen. The CS-450 Eclipse has a non-volatile memory that retains the unit's settings, even when power to the unit is turned off. So, the next time you use it, no setup is required.

CS-450 Eclipse handles both PC and Mac computers and can be controlled from the front panel, via an Infrared Remote Unit or by the RS-232 port. Its 2X Zoom feature allows you to enlarge a quarter of the computer screen to fill the entire video screen and the Pan feature allows you to move around to any area you choose. The advanced 4-Line Digital Flicker Elimination circuitry provides crisp, clear images up to 1024x768, without line dropping, at any vertical refresh rate. It is capable of handling even higher resolutions. Video outputs are switchable between NTSC and PAL and are simultaneously provided in Composite, S-Video and RGBS formats, as well as a computer monitor loop-thru. The OSD (On-Screen Display) provides ease of setup and status monitoring. The Subcarrier lock range of +/- 200Hz in NTSC (250Hz in PAL) and the Subcarrier phase adjustment +/- 12 degrees provides the flexibility needed to lock to incoming signals.

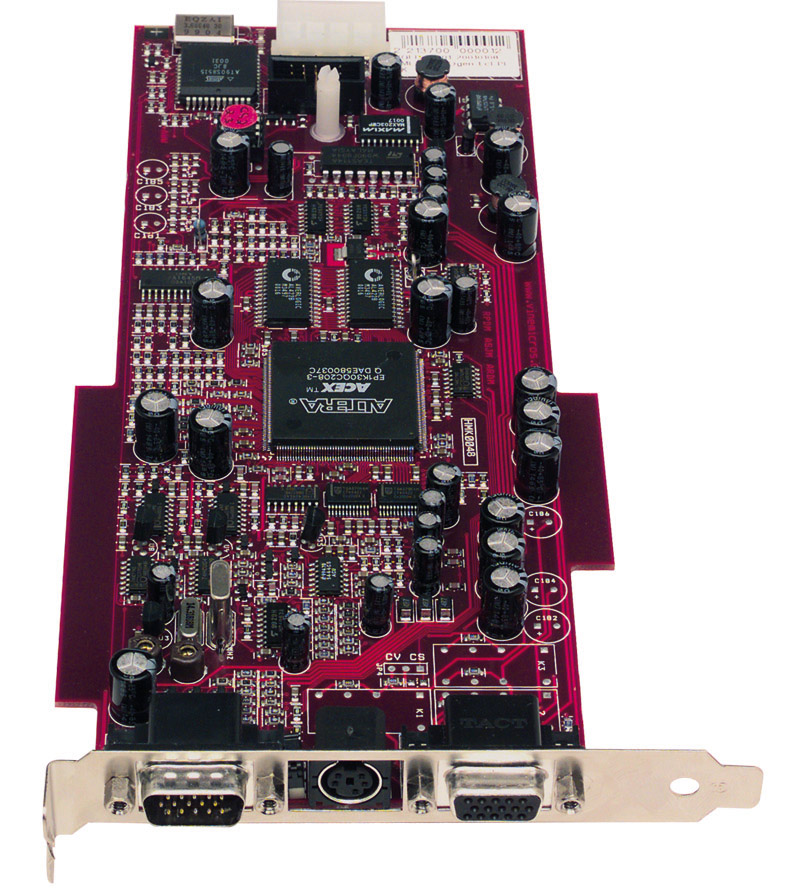

CS-460 Eclipse Internalis a PCI version of the product. It also fits into an ISA slot by simply removing the end-bracket, turning the card 180 degrees, and replacing the end-bracket. Designed specifically for system integration, the card removes the need for external power supplies and greatly reduces the length of cables usually required from the PC to the unit. The PCI or ISA slots in your computer are used solely for holding the unit in place and no data or power connections are made to either of them via the bus. This prevents bus signal or timing compatibility issues, and means that the unit can even be mounted in other types of enclosures. The internal version takes power from a spare hard disk drive connector. It is supplied with video breakout cables, so you still have the same range of signals as the external version. Standard control is via RS232 (a 9-Pin D serial cable is included to connect to the PC), using either your own software or our CORIO Control Panel software. An IR Remote Control is available as an option and requires the optional Infrared Receiver Module to work.

Click the image for a larger view of some applications...

Text Masking	Timing Overlays	Studio Applications
Security Applications	Information Delivery	Point of Sale Application

Click the image for larger product views...

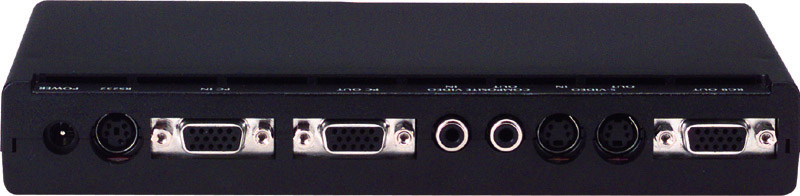

CS-450 Rear View	CS-460 Backplate	Other Eclipse Cables
