The LPM-55 is a Multi-Standard Video Test Pattern Generator
for professional use, capable of outputting signals in NTSC 3.58, NTSC 4.43, PAL, PAL-M, PAL-N and SECAM
television standards. An On Screen Display indicates the standard selected. Fourteen basic test patterns
are provided, including: Circle, 8-Step Grey Scale, 16-Step Grey Scale, Color Bar, Multiburst, Color
Difference, Moving White Field, White Pattern, Checkerboard, Crosshatch, Dots, Center Cross and Purity Patterns.
From these fourteen basic patterns, over one hundred individual test pattern signals can be derived.
Simultaneous outputs are available in Composite, S-Video and YUV Component.
|
SPECIFICATIONS
| Video Outputs |
| Composite Video |
1x via BNC Connector |
| S-Video (Y/C) |
1x via 4-Pin Mini-DIN |
| YUV Component |
1x via 3x BNC Connectors |
| General |
| Impedance |
75Ω |
| Television Standards |
NTSC 3.58, NTSC 4.43, SECAM, PAL B,D,G,I,K, PAL-M, PAL-N |
| Controls |
Front Panel Push Buttons |
| Indications |
Front Panel LEDs, OSD |
| Basic Test Patterns |
14 (100+ Possible Combinations) |
| Warranty |
| Limited Warranty |
2 Years Parts and Labor |
| Mechanical |
| Size (H-W-D) |
2.75"x7.1"x11" (70x180x280mm) |
| Weight (Net) |
3.7 lbs (1.7kg) |
| Environmental |
| Operating Temperature |
+41° to +104° F (5° to +40° C) |
| Operating Humidity |
20% to 80%, Non-condensing |
| Storage Temperature |
-4° to +140° F (-20° to +60° C) |
| Storage Humidity |
5% to 95%, Non-condensing |
| Power
Requirement |
| External Power Supply |
100-240VAC @ 50-60Hz, 3 Watts |
| Regulatory
Approvals |
| Test Generator |
FCC, CE |
| Power Supplies |
UL, CE, CSA |
| Accessories Included |
| 1x Operations Manual |
|
| 1x AC Power Cable |
3-Pin USA Type |
| Product Item Numbers |
| LPM-55 |
Video Test Pattern Generator |
|
LPM-55 Key Features
- Output Standards: NTSC 3.58, NTSC 4.43, PAL, PAL-M, PAL-N and SECAM
- Composite Video Output: 1Vp-p, 75 ohm BNC Connector
- S-Video (Y/C) Output: Y=1Vp-p, 75 ohm. C=100%, 75 4-Pin Mini-DIN Connector
- YUV Output: Y=1Vp-p, 75 ohm R-Y=0.7Vp-p. B-Y=0.7Vp-p. 3 BNC Connectors
- Operating Temperature: +5 C to +40 C
- Operating Humidity: 20% to 80%
- Power Supply: 100-240VAC @ 50-50Hz
- Power Consumption: Approximately 3 Watts
- Dimensions (H,W,D): 2.75"x7.1"x11" (70x180x280mm)
- Weight: 3 lbs 12 oz (1.7kg)
- Accessories: Manual, AC Power Cord
|
Click the image for a larger view ...

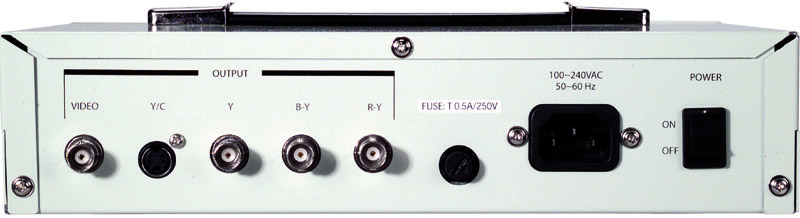

| LPM-55 Rear Panel |
|
 |
|
