SD-210AD is a high performance, multi-standard Analog
Video to Serial Digital Video Converter, designed for broadcast and
professional use. The unit’s 12-bit resolution Analog to Digital converters
provide a highly reliable 10-bit video decoding. The SD-210AD handles 525
or 625 line signals and accepts NTSC, PAL-B, G, N, M and SECAM inputs. It
is controlled via front panel buttons and an LCD display. The Component
Video (YUV) input is menu selectable as either in SMPTE or Betacam format.
An integral Video Processor provides adjustment of signal parameters,
including: Luminance, Chrominance, Setup, Hue and Sharpness. The unit is
housed in a Desktop metal case with an optional dual rackmount assembly. It
uses an external 5VDC In-Plug type power adapter with locking DC connector.
| SPECIFICATIONS
| Analog Video Inputs |
| Composite |
1x via BNC Connector |
| S-Video (Y/C) |
1x via 4-PIN Mini-DIN |
| Component (YUV or RGB) |
1x via 3 BNC Connectors |
| Television Standards |
NTSC,PAL-B,G,N,M,SECAM |
| Impedance |
75Ω |
| SDI Video Output |
| SMPTE 259M, 270Mbits/sec |
2x via BNC Connectors |
| Video Specifications |
| Signal Processing |
10-bit |
| Frequency Response |
Flat to more than 5MHz |
| Chroma to Luma Delay |
<=5nS |
| Differential Gain |
<=0.5% |
| Differential Phase |
<=0.5° |
| Luminance Non-linearity |
<=1% |
| K Factor |
<=0.8% |
| Signal to Noise Ratio |
| White Field, weighted |
Better than 65db |
| Black Field, weighted |
Better than 62db |
| Processing Amplifier |
| Video Level Adjustments |
Luminance, Chrominance, Setup, Hue, Sharpness |
| Filter Selection |
Adaptive Comb, Low Pass |
| Control Method |
| Display |
16x2 LCD |
| Front Panel Buttons |
Up, Down, Escape, Enter |
| Mechanical |
| SD-210AD (HWD) |
1.4”x8.45x5.2” (36x215x130mm) |
| Weight (Net) |
1.8lbs (0.8kg) |
| RM-200 (HWD) |
1.75"x19"x7" (44x482x178mm) |
| Weight (Net) |
2.4lbs (1.1kg) |
| Warranty |
| Limited Warranty |
2 Years Parts and Labor |
| Environmental |
| Operating Temperature |
+32° to +120° F (0° to +48° C) |
| Operating Humidity |
10% to 85%, Non-condensing |
| Storage Temperature |
-40° to +150° F (-40° to +65° C) |
| Storage Humidity |
10% to 85%, Non-condensing |
| Power
Requirement |
| External Power Supply |
5VDC @ 0.5A |
| Regulatory
Approvals |
| Converter Unit |
FCC, CE |
| Power Supply |
UL, CE, CSA |
| Accessories Included |
| 1x Composite In Cable |
6’ (2m) BNC to BNC |
| 1x Power Adapter |
Input: 100-240VAC/50-60Hz
Output: 5VDC@2A |
| 1x Operations Manual |
SD-210AD |
| Product Item Numbers |
| SD-210AD |
Analog to SDI Converter |
| RM-200 |
Dual Rackmount Assembly |
|
Key Features
of the SD-210AD
- 10-bit Signal Processing
- 5-Line Adaptive Comb Filtering
- Serial Digital Video Output at 270Mbits/sec
- Composite, S-Video, YUV Inputs
- Video Processing Amplifier Adjustments
- NTSC, PAL-B, G, N, M and SECAM Operation
- Desktop Cases with Optional Rackmount
|
Click the image for a larger view ...

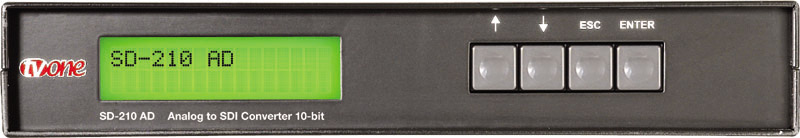

| SD-210AD Front View |
SD-210AD Rear View |
 |
 |
