SD-220DA is a high performance, multi-standard Serial
Digital Video to Analog Video Converter, designed for broadcast and professional
use. The unit provides a highly reliable 10-bit SDI to Analog conversion with
reclocking and equalization of the input signal for distances up to 300 meters
from the source, provided that high quality, double shielded coaxial cable has
been used. The SD-220DA handles 525 or 625 line signals and provides NTSC, NTSC-J,
PAL, or PAL-N outputs. It is controlled via front panel buttons and an LCD display.
The Component Video output is menu selectable as either RGB or YUV in SMPTE or
Betacam format. An integral Video Processor provides adjustment of signal parameters,
including: Luminance, Chrominance, Setup, Hue and Sharpness. The unit is housed
in a Desktop metal case with an optional dual rackmount assembly. It uses an external
5VDC In-Plug type power adapter with locking DC connector.
| SPECIFICATIONS
| SDI Video Input |
| SMPTE 259M, 270Mbits/sec |
1x via BNC Connector |
| SDI Video Output |
| Active Looping Signal |
Equalized & Reclocked |
| Analog Video Outputs |
| Composite |
1x via BNC Connector |
| S-Video (Y/C) |
1x via 4-PIN Mini-DIN |
| Component (YUV or RGB) |
1x via 3 BNC Connectors |
| Television Standards |
NTSC, NTSC-J, PAL, PAL-N |
| Impedance |
75Ω |
| Video Specifications |
| Signal Processing |
10-bit |
| Frequency Response |
Flat to more than 5MHz |
| SC/H Phase |
<=5° |
| Chroma to Luma Delay |
<=5nS |
| Differential Gain |
<=0.5% |
| Differential Phase |
<=0.5° |
| Luminance Non-linearity |
<=2% |
| K Factor |
<=0.8% |
| Signal to Noise Ratio |
| White Field, weighted |
Better than 77db |
| Black Field, weighted |
Better than 80db |
| Processing Amplifier |
| Video Level Adjustments |
Luminance, Chrominance, Setup, Hue, Sharpness |
| Component Selection |
RGB or YUV Beta or SMPTE |
| Control Method |
| Display |
16x2 LCD |
| Front Panel Buttons |
Up, Down, Escape, Enter |
| Mechanical |
| SD-220DA (HWD) |
1.4”x8.45x5.2” (36x215x130mm) |
| Weight (Net) |
1.8lbs (0.8kg) |
| RM-200 (HWD) |
1.75"x19"x7" (44x482x178mm) |
| Weight (Net) |
2.4lbs (1.1kg) |
| Warranty |
| Limited Warranty |
2 Years Parts and Labor |
| Environmental |
| Operating Temperature |
+32° to +120° F (0° to +48° C) |
| Operating Humidity |
10% to 85%, Non-condensing |
| Storage Temperature |
-40° to +150° F (-40° to +65° C) |
| Storage Humidity |
10% to 85%, Non-condensing |
| Power
Requirement |
| Internal Power Supply |
5VDC @ 0.5A |
| Regulatory
Approvals |
| Converter Unit |
FCC, CE |
| Power Supply |
UL, CE, CSA |
| Accessories Included |
| 1x SDI Input Cable |
6’ (2m) BNC to BNC |
| 1x Power Adapter |
Input: 100-240VAC/50-60Hz
Output: 5VDC@2A |
| 1x Operations Manual |
SD-220DA |
| Product Item Numbers |
| SD-220DA |
SDI to Analog Converter |
| RM-200 |
Dual Rackmount Assembly |
|
Key Features
of the SD-220DA
- 10-bit Signal Processing
- Serial Digital Video Input at 270Mbits/sec
- Composite, S-Video, YUV (or RGB) Outputs
- Video Processing Amplifier Adjustments
- NTSC, NTSC-J, PAL & PAL-N Operation
- Desktop Cases with Optional Rackmount
|
Click the image for a larger view ...

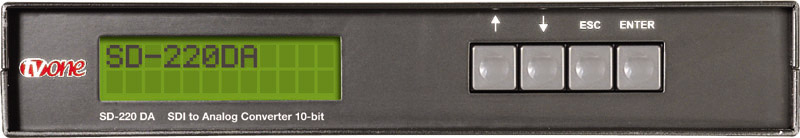

| SD-220DA Front View |
SD-220DA Rear View |
 |
 |
