TV One-Task™ 1T-DVI-721 DVI Switcher is a high performance product designed to meet the most demanding requirements for the switching of DVI signals with or without HDCP copy protection. A maximum pixel rate of 165 MHz provides resolution capabilities up to 1920x1200 and 1080p. The 1T-DVI-721 has two inputs and can be controlled by the front panel input selection button or an infrared remote control. Should a conflict exist with other IR remote controls in the operational environment, the included IR remote controller can be easily reprogrammed to avoid the problem.
The unit has DVI-I connectors for the input and outputs and is powered via an external 9VDC power adapter. An LED display indicates the current input selection and the presence of DC Power. An IR Remote Extender option is available for applications requiring the unit to be hidden from view or when it is desirable to extend the range beyond a direct view of the unit such as around a corner.
|
SPECIFICATIONS
| I/O Connectors |
| Inputs |
2x via DVI-I |
| Outputs |
1x via DVI-I |
| Performance |
| Maximum Pixel Rate |
165MHz |
| Maximum Resolution |
1920 X 1200@60Hz,1080p |
| Remote Control |
| IR (included) |
Optional IR Extender available |
| Mechanical |
| Dimension (H-W-D) |
1.5”x6.3”x2.8” (45x162x72mm)) |
| Weight |
14 oz (400g) |
| Environmental |
| Operating Temperature |
0° to 40° C (+32° to +104° F) |
| Operating Humidity |
10% to 85%, Non-condensing |
| Storage Temperature |
-20° to +60° C (+20° to +140° F) |
| Storage Humidity |
10% to 85%, Non-condensing |
| Warranty |
| Limited Warranty |
2 Years Parts and Labor |
| Power Requirement |
| External Power Supply |
9VDC @ 1.3A |
| Regulatory Approvals |
| Amplifier Units |
FCC, CE, RoHS |
| Power Supplies |
UL, CUL, CE, PSE, GS, RoHS |
| Accessories Included |
| See Specsheet |
Download Specsheet |
| Product Item Number |
| 1T-DVI-721 |
2 In x 1 Out |
| Optional Accessories |
| 1T-IRR-100 |
Remote IR Extender Module |
| RM-320S |
Rackmount kit for one unit |
| RM-320D |
Rackmount kit for two units |
|
Key Features of 1T-DVI-7XX Series
- Fully HDCP Compliant
- 165 MHz Maximum Pixel Rate
- Maximum Resolution of 1920x1200@60Hz
- 2 Inputs
- Front Panel and IR Remote Control
- Programmable IR Remote Controller
|
Click the image for a larger view ...

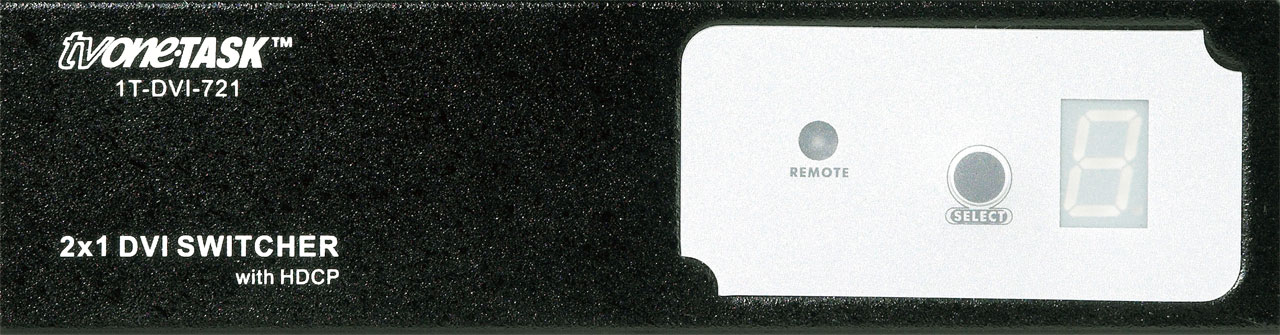

| 1T-DVI721 Front View |
1T-DVI721 Rear View |
 |
 |

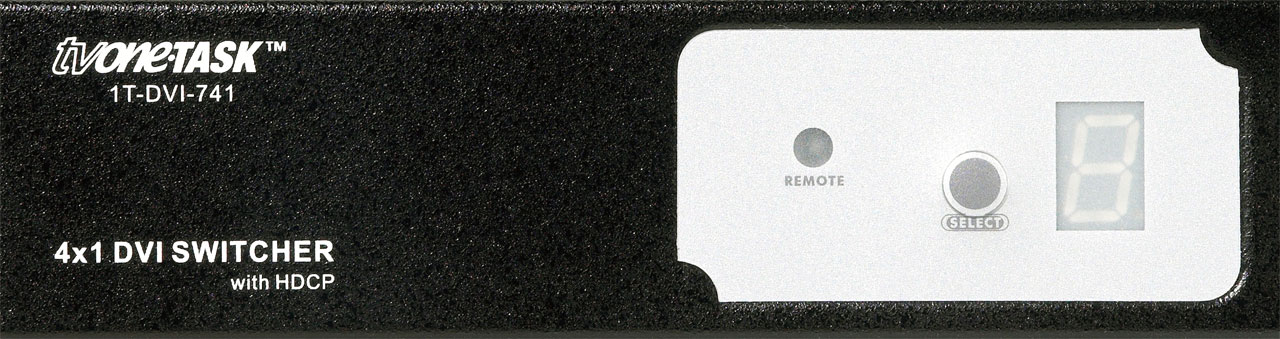

| 1T-DVI741 Front View |

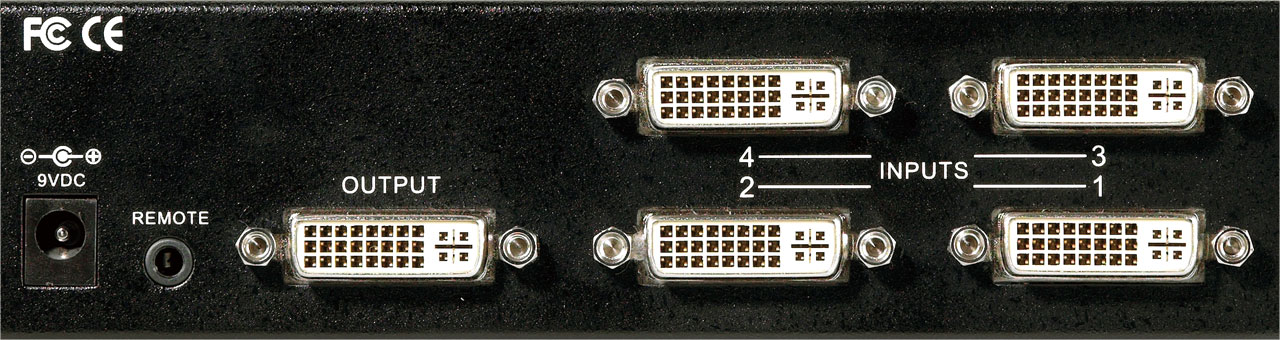

1T-DVI741 Rear View |
 |
 |
