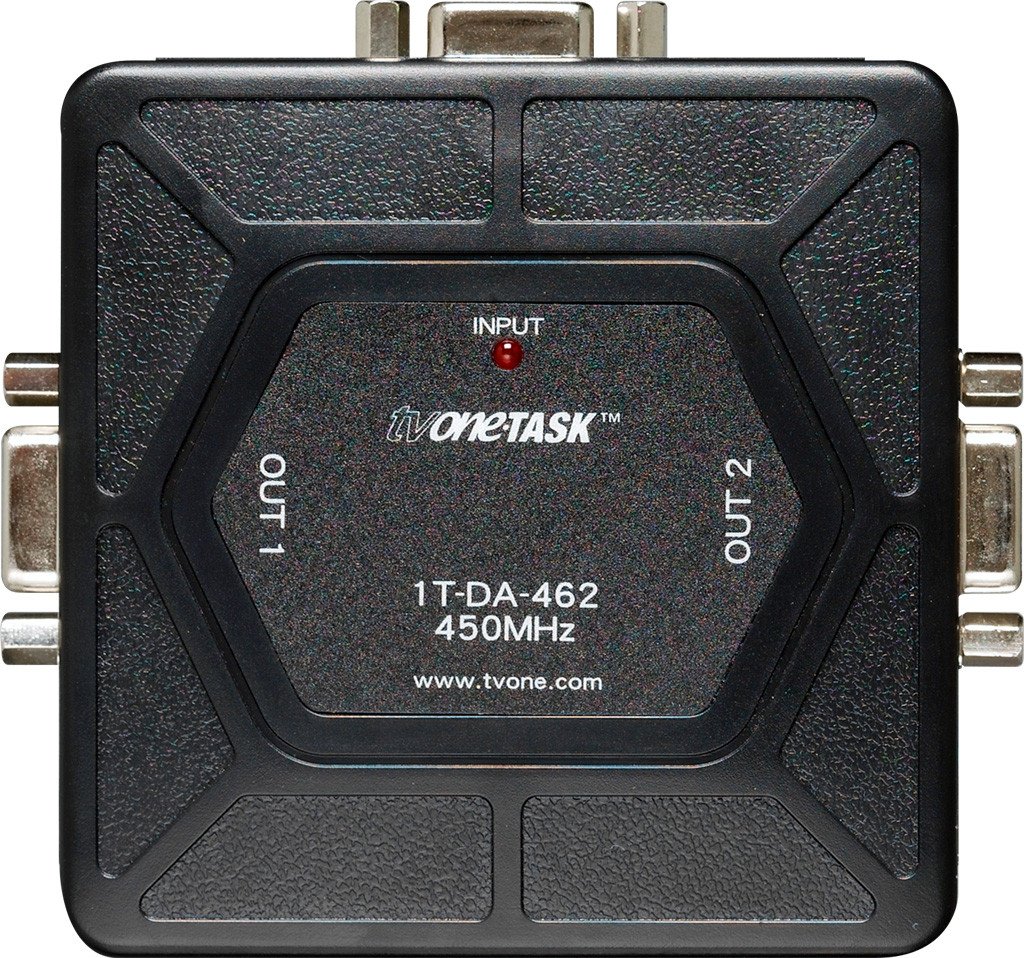

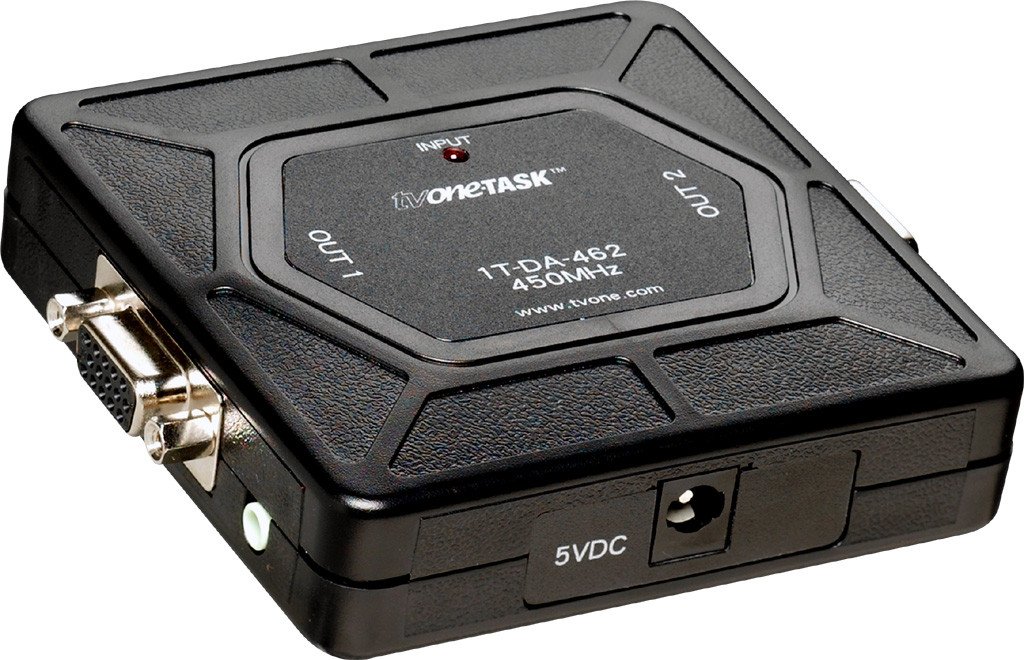

[Discontinued] 1T-DA-462

1x2 VGA Splitter with Stereo Audio.

Category: Legacy Products
Manufacturer: tvONE
SKU: 1T-DA-462
Print

PRODUCT DISCONTINUED
The 1T-DA-462 has been discontinued. If you need this product for your project, please contact your
sales representative.


1T-DA-462 RGBHV
Distribution Amplifier provides 2 VGA type outputs plus Stereo Audio for use in any situation requiring multiple outputs from a single PC or other RGB video source. The video bandwidth in excess of 450MHz handles computer resolutions up to 2560x1600 at distances up to 300 feet from the source without signal deterioration. The D.A. provides VESA industry standard DDC (Data Display Channel) bidirectional communications for host control of the downstream monitors. Input and Output Video connectors are high quality HD-15 type. The product is FCC & CE approved and are RoHS compliant. The power supply is UL, CE, CSA approved and RoHS compliant.

The 1T-DA-462 is housed in small, rugged plastic case. It requires 5VDC and can be powered from a USB cable or an external AC Power Adapter, both of which are included. Various cable lengths are available as optional accessories.
