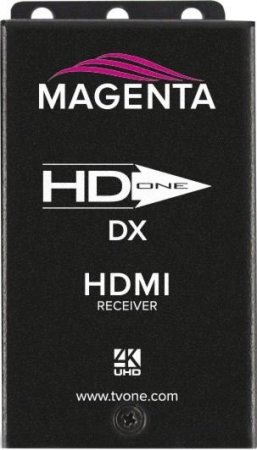

HD-One DX RX
HD-One DX Receiver extends HDMI1.4 to a distance of 328 feet/100 meters.
| Inputs |
|
| Outputs |
|
| Status | Active |
Product Comparison
| Warranty | 5 |
| Number of Outputs | 1 |
| Cable Type | Cat.5e/Cat.6 |
| Cable Length | 100m |
| Resolution | up to 4k60 |
| Audio | yes |
Magenta’s HD-One DX is a top of the line 4K and 1080p extender that greatly reduces the issues that most extenders face. The HD-One DX can send 1920x1200 resolution HDCP-protected video, embedded audio, and IR to a distance of 328 feet (100 meters) or 4k60 up to 200 feet (60 meters), all on a single Cat6 while also using less power, dissipating less heat and providing significantly better resistance to environmental emissions and interference.
In addition to video, the HD-One DX also functions with HDMI embedded audio. Dolby®, TrueHD, and DTS-HD Master Audio are all supported. HD-One is fully HDCP compliant and features plug-and-play functionality. Most importantly for installers, HD-One products just work, period!
Key Features:
- 1920x1080, 1080P/60, Resolution, 4K UHD (LX,DX)
- Works Over a Single CAT5e, CAT6, CAT6e, CAT7 UTP, STP or FTP Cable
- Supports Embedded HDMI Audio, Including Dolby® TrueHD and DTS-HD Master Audio
- No Adjustments or Tuning Required
- 328'/100 Meter Reach
- 200'/60 Meter Reach 4k Resolutions (LX, DX)
- 500’/152 Meter Reach (LX500, DX500)
- HDMI 1.4 Compliant, HDBaseT
- HDCP Compliant
- Bi-Directional RS-232 Interface (HD-One LX/LX500)
- Two-Way IR Support (HD-One LX/LX500)
- Includes one IR Emitter/Receiver pair (HD-One LX/LX500)
- Tolerances Designed for Commercial Environments
- Compatable with CORIOmax HDBaseT input and output modules
Typical Installation Types
- Museums
- Large Retail Environments
- High-end Security, Education and Residential
- Digital Signage
- Wayfinding Installations
- Home Theatre
tvONE CORIOmax Compatibility
CORIOmaster
- CORIOmaster C3-540
- CORIOmaster mini C3-510
- CORIOmaster micro C3-503
- HDBT output module for CORIOmaster (CM-HDBT-SC-2OUT-1ETH)
- HDBT input module for CORIOmaster (CM-HDBT-SC-2IN-1ETH)
CORIOmatrix
- CORIOmatrix C3 340
- CORIOmatrix mini C3-310
- HDBT output module for CORIOmatrix (CM-HDBT-XSC-2OUT-1ETH)
HD-One Series
- HD-ONE DX:
Kit: 2211079-03
TX: 2211093-02
RX: 2211094-02
- HD-One LX:
Kit:2211078-02
TX: 2211095-02
RX: 2211096-02
- HD-ONE DX500:
Kit: 2211114-02
Tx: 2211121-01
RX: 2211122-01
- HD-ONE LX500:
Kit: 2211113-02
TX: 2211123-01
RX: 2211124-01
